Chi-square minimization for an SED with only photometry
Forward modeling an observed SED composed of only photometric data points by minimizing the chi-square statistics between the data and atmospheric models.
[1]:
import seda # import the seda package
import importlib
import numpy as np
import os
import matplotlib.pyplot as plt
from matplotlib.ticker import MultipleLocator, FormatStrFormatter, AutoMinorLocator, StrMethodFormatter, NullFormatter
from astropy.io import fits, ascii
SEDA v0.5.6.dev3 package imported
Read photometry
As an example here, let’s read near- and mid-infrared magnitudes from different surveys (2MASS, Spitzer/IRAC, WISE, and JWST/MIRI) for the T8 (~750 K) brown dwarf 2MASS J04151954-0935066, as compiled in Alejandro Merchan et al. (2025):
[2]:
# path to the seda package
path_seda = os.path.dirname(os.path.dirname(seda.__file__))
# read table with photometry
phot_file = path_seda+'/docs/notebooks/data/0415-0935_photometry.dat'
photometry = ascii.read(phot_file)
# keep columns with magnitudes of interest
photometry.remove_column('WISE_designation') # remove only columns without photometry
# convert table with photometry to a dictionary with three keys: filters, photometry, and uncertainties
# save output dictionary as a fancy ascii table in the seda directory "data"
# the output table can be open using "seda.read_prettytable"
table_name = path_seda+'/docs/notebooks/data/0415-0935_photometry_prettytable.dat'
out = seda.utils.convert_photometric_table(photometry, save_table=True,
table_name=table_name)
phot = out['phot']
ephot = out['ephot']
filters = out['filters']
See restructured table:
[3]:
seda.utils.read_prettytable(table_name)
[3]:
{'filters': array(['2MASS/2MASS.J', '2MASS/2MASS.H', '2MASS/2MASS.Ks',
'Spitzer/IRAC.I1', 'Spitzer/IRAC.I2', 'Spitzer/IRAC.I3',
'Spitzer/IRAC.I4', 'WISE/WISE.W1', 'WISE/WISE.W2', 'WISE/WISE.W3',
'WISE/WISE.W4', 'JWST/MIRI.F1000W', 'JWST/MIRI.F1280W',
'JWST/MIRI.F1800W'], dtype='<U16'),
'phot': array([15.695, 15.537, 15.429, 14.256, 12.374, 12.87 , 12.11 , 15.148,
12.305, 11.093, 8.24 , 10.768, 10.439, 10.36 ]),
'ephot': array([0.058, 0.113, 0.201, 0.019, 0.017, 0.07 , 0.05 , 0.026, 0.011,
0.125, 0. , 0.002, 0.002, 0.007])}

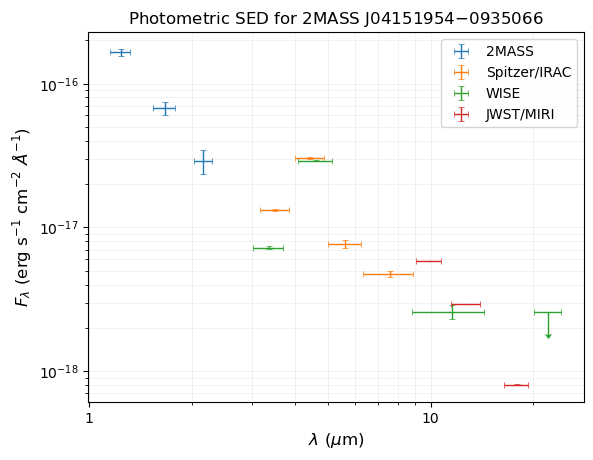

Plot photometric SED to verify everything looks okay.
First convert magnitudes into fluxes:
[5]:
# mag to flux
out_mag_to_flux = seda.synthetic_photometry.mag_to_flux(mag=phot, emag=ephot,
filters=filters,
flux_unit='erg/s/cm2/A')
flux = out_mag_to_flux['flux'] # in erg/s/cm2/A
eflux = out_mag_to_flux['eflux'] # in erg/s/cm2/A
wl_eff = out_mag_to_flux['lambda_eff_SVO(um)'] # effective wavelength in um
width_eff = out_mag_to_flux['width_eff_SVO(um)'] # effective width in um
filters = out_mag_to_flux['filters']
Plot SED
[6]:
fig, ax = plt.subplots()
# select 2MASS magnitudes
mask_2MASS = ['2MASS' in filt for filt in filters]
ax.errorbar(wl_eff[mask_2MASS], flux[mask_2MASS], xerr=width_eff[mask_2MASS]/2,
yerr=eflux[mask_2MASS], fmt='.', markersize=1., capsize=2,
elinewidth=1.0, markeredgewidth=0.5, label='2MASS')
# select IRAC magnitudes
mask_IRAC = ['IRAC' in filt for filt in filters]
ax.errorbar(wl_eff[mask_IRAC], flux[mask_IRAC], xerr=width_eff[mask_IRAC]/2,
yerr=eflux[mask_IRAC], fmt='.', markersize=1., capsize=2,
elinewidth=1.0, markeredgewidth=0.5, label='Spitzer/IRAC')
# select WISE magnitudes
mask_WISE = ['WISE' in filt for filt in filters]
# handle upper limits
uplims = (ephot==0) * 1 # upper limits (null errors) indicated by 1
eflux[eflux==0] = 0.3*flux[eflux==0] # size of the arrow indicating upper limits
# plot WISE with upper limits
ax.errorbar(wl_eff[mask_WISE], flux[mask_WISE], xerr=width_eff[mask_WISE]/2,
yerr=eflux[mask_WISE], fmt='.', markersize=1., capsize=2,
elinewidth=1.0, markeredgewidth=0.5, label='WISE',
uplims=uplims[mask_WISE])
# select MIRI magnitudes
mask_JWST = ['JWST' in filt for filt in filters]
ax.errorbar(wl_eff[mask_JWST], flux[mask_JWST], xerr=width_eff[mask_JWST]/2,
yerr=eflux[mask_JWST], fmt='.', markersize=1., capsize=2,
elinewidth=1.0, markeredgewidth=0.5, label='JWST/MIRI')
ax.xaxis.set_minor_locator(AutoMinorLocator())
ax.yaxis.set_minor_locator(AutoMinorLocator())
plt.xscale('log')
plt.yscale('log')
ax.xaxis.set_major_formatter(StrMethodFormatter('{x:.0f}'))
ax.grid(True, which='both', color='gainsboro', linewidth=0.5, alpha=0.5)
ax.legend()
plt.title('Photometric SED for 2MASS J04151954$-$0935066')
plt.xlabel(r'$\lambda\ (\mu$m)', size=12)
plt.ylabel(r'$F_\lambda\ ($erg s$^{-1}$ cm$^{-2}$ $\AA^{-1}$)', size=12)
plt.show()
Load input data
Look at the input parameters here.
For any SEDA function, we can also see the function description directly on the notebook with the command help(), e.g.:
help(seda.input_parameters.InputData)
[7]:
# input photometry
phot = phot
ephot = ephot
filters = filters
phot_unit = 'mag'
# distance to the target (optional and used to derive a radius)
distance = 5.71 # pc (parallax=175.2+-1.7; Dupuy-Liu2012)
edistance = 0.06 # pc
# load all the input data parameters
my_data = seda.input_parameters.InputData(phot=phot, ephot=ephot, filters=filters,
phot_unit=phot_unit, distance=distance,
edistance=edistance, fit_spectra=False,
fit_photometry=True)
Null photometric errors for ['WISE/WISE.W4'] magnitudes, so they will be discarded.
Input data loaded successfully:
13 magnitudes
Download (if not yet) the atmospheric models you want to use.
Use the commands below to see the available atmospheric models, the links to download them, and other relevant information from models. You can read more about the model here.
Also consider this tutorial to explore the free parameters in the models and their coverage.
[8]:
# available atmospheric models
seda.models.Models().available_models
[8]:
['BT-Settl',
'ATMO2020',
'Sonora_Elf_Owl',
'SM08',
'Sonora_Bobcat',
'Sonora_Diamondback',
'Sonora_Cholla',
'LB23']
[9]:
# let's consider the ATMO 2020 models in this tutorial
# some parameters of interest from the selected model grid
model = 'ATMO2020'
print(seda.models.Models(model).ref) # reference
print(seda.models.Models(model).ADS) # link to paper
print(seda.models.Models(model).download) # link to download the models
seda.models.Models(model).params_unique # coverage of free parameters in the grid
Phillips et al. (2020)
https://ui.adsabs.harvard.edu/abs/2020A%26A...637A..38P/abstract
https://noctis.erc-atmo.eu/fsdownload/zyU96xA6o/phillips2020
[9]:
{'Teff': array([ 200., 250., 300., 350., 400., 450., 500., 550., 600.,
700., 800., 900., 1000., 1100., 1200., 1300., 1400., 1500.,
1600., 1700., 1800., 1900., 2000., 2100., 2200., 2300., 2400.,
2500., 2600., 2700., 2800., 2900., 3000.]),
'logg': array([2.5, 3. , 3.5, 4. , 4.5, 5. , 5.5]),
'logKzz': array([0., 4., 6.])}
Load model grid options
Look at the input parameters here.
[10]:
# select the atmospheric models of interest
model = 'ATMO2020'
# path to the directory or directories containing the model spectra
# (update it to your own path)'
model_dir = ['/home/gsuarez/TRABAJO/MODELS/atmosphere_models/ATMO2020/atmosphere_models/CEQ_spectra/',
'/home/gsuarez/TRABAJO/MODELS/atmosphere_models/ATMO2020/atmosphere_models/NEQ_weak_spectra/',
'/home/gsuarez/TRABAJO/MODELS/atmosphere_models/ATMO2020/atmosphere_models/NEQ_strong_spectra/',
]
# set parameter ranges to select a grid subset and to be used as uniform priors
# when a free parameter range is not specified, the whole grid range will be explored
params_ranges = {
'Teff': [700, 800], # Teff range
'logg': [4.0, 5.0] # logg range
}
# load model options
my_model = seda.input_parameters.ModelOptions(model=model, model_dir=model_dir,
params_ranges=params_ranges)
Model options loaded successfully
Tip: If you plan to model several photometric SEDs obtained with the same filters, it is possible to save the synthetic photometry derived from model spectra during the modeling to reuse it and make subsequent fits much faster. For this, set the parameter path_save_syn_phot in seda.ModelOptions above to a folder path where you want to store the derived synthetic photometry. Once the photometry has been stored, the next time you run the code just replace model_dir by the path used
in path_save_syn_phot and set skip_syn_phot=True to avoid the calculation of synthetic photometry.
Load chi-square fit options
Look at the input parameters here.
Consider the default full wavelength range of the photometric filters for the fits. Otherwise, we can use the parameter fit_phot_range to set a different fit range.
[11]:
# choose a filename (optional) to save the sampling results as a pickle file
# it is convenient to set a non-default name when running
# the code several times in the same folder to avoid overwriting results
chi2_pickle_file = f'{model}_chi2_minimization_photometry_only.pickle'
chi2_table_file = f'{model}_chi2_minimization_photometry_only.dat'
# load chi-square fit options
my_chi2 = seda.input_parameters.Chi2Options(my_data=my_data, my_model=my_model,
chi2_pickle_file=chi2_pickle_file,
chi2_table_file=chi2_table_file)
18 model spectra selected with:
Teff range = [700, 800]
logg range = [4.0, 5.0]
13 of 13 input valid magnitudes within the fit range "fit_phot_range"
Chi-square fit options loaded successfully
elapsed time: 2.1 min
Run chi2 fit
[12]:
out_chi2 = seda.chi2_fit.chi2(my_chi2=my_chi2)
Running chi-square fitting...
chi-square minimization results saved successfully
Chi-square fit ran successfully
elapsed time: 0.0 s
Plot results

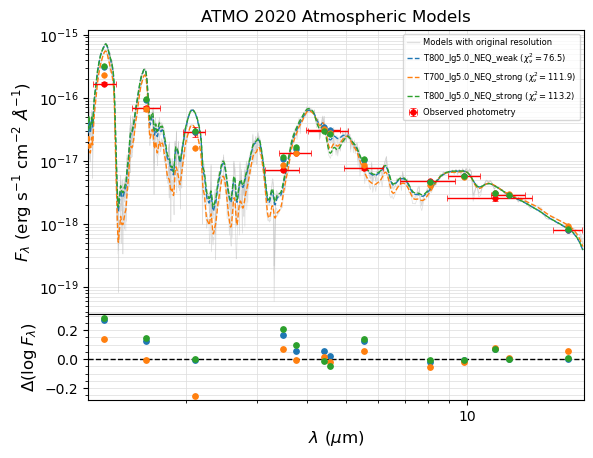

SED with the best three fits.
The pickle file generated by seda.chi2_fit and stored with the name my_chi2.chi2_pickle_file is the input file to make plots. We can provide the name by either using my_chi2.chi2_pickle_file (if my_chi2 is in memory) or just typing it.
[3]:
# show the best-fitting spectra with their original resolution and
# convolved to a R=res at the wavelength of lam_res (microns)
# use default logarithmic scale for fluxes
chi2_pickle_file = 'ATMO2020_chi2_minimization_photometry_only.pickle'
fig, ax = seda.plots.plot_chi2_fit(chi2_pickle_file, N_best_fits=3, xlog=True,
ori_res=True, res=200, lam_res=5)

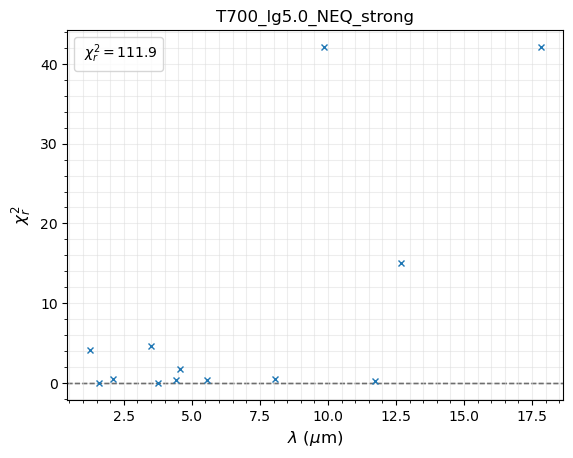

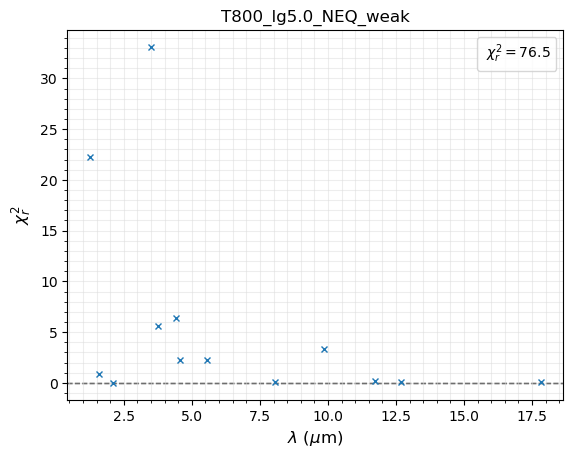

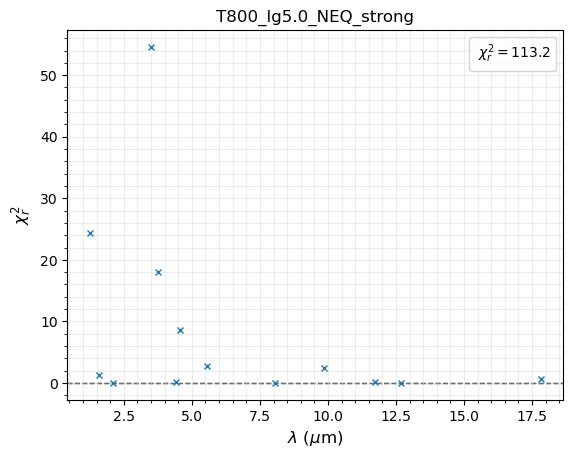

Reduced chi square against wavelength
[4]:
fig, ax = seda.plots.plot_chi2_red(chi2_pickle_file, N_best_fits=3)
